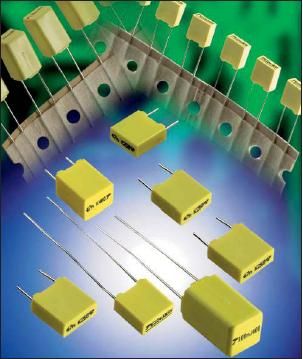

KEMET校正电容:供应Kemet校正电容63V-630V系列
特点:
金属化聚酯膜,叠片式结构
塑料外壳(UL94 V-0),阻燃环氧填充
抗脉冲能力强
用途:
旁路,隔直,耦合,退耦
脉冲,逻辑,定时,电路振荡器
LCD监视器整流,汽车直流马达抑制干扰
规格:
63V:0.001μF ~ 2.2μF
100V:0.001μF ~ 1.0μF
250V:0.001μF ~ 0.22μF
400V:0.001μF ~ 0.1μF
630V:0.001μF ~ 0.033μF
GENERAL DESCRIPTION
Dielectric: Metallized polyester film (Polyethylene teraphtalate)Stacked-film
Leads: Radial tin - plated wire
Protection: Plastic case (UL 94: V-O) / Epoxy Resin
Marking: Logo
Nominal Capacitance
Tolerance (EIA)
DC Nominal Voltage
Example: T 100nK 63
Delivery Mode: Bulk
Taped (reel or ammopack)
STANDARDIZATION
Generic specifications:CEI 384-1/CECC 30000/UTE 83100
Sectional specifications:CEI 384-2/CECC 30400/UTE 83151
Complies with special specification:CECC 30401-063
